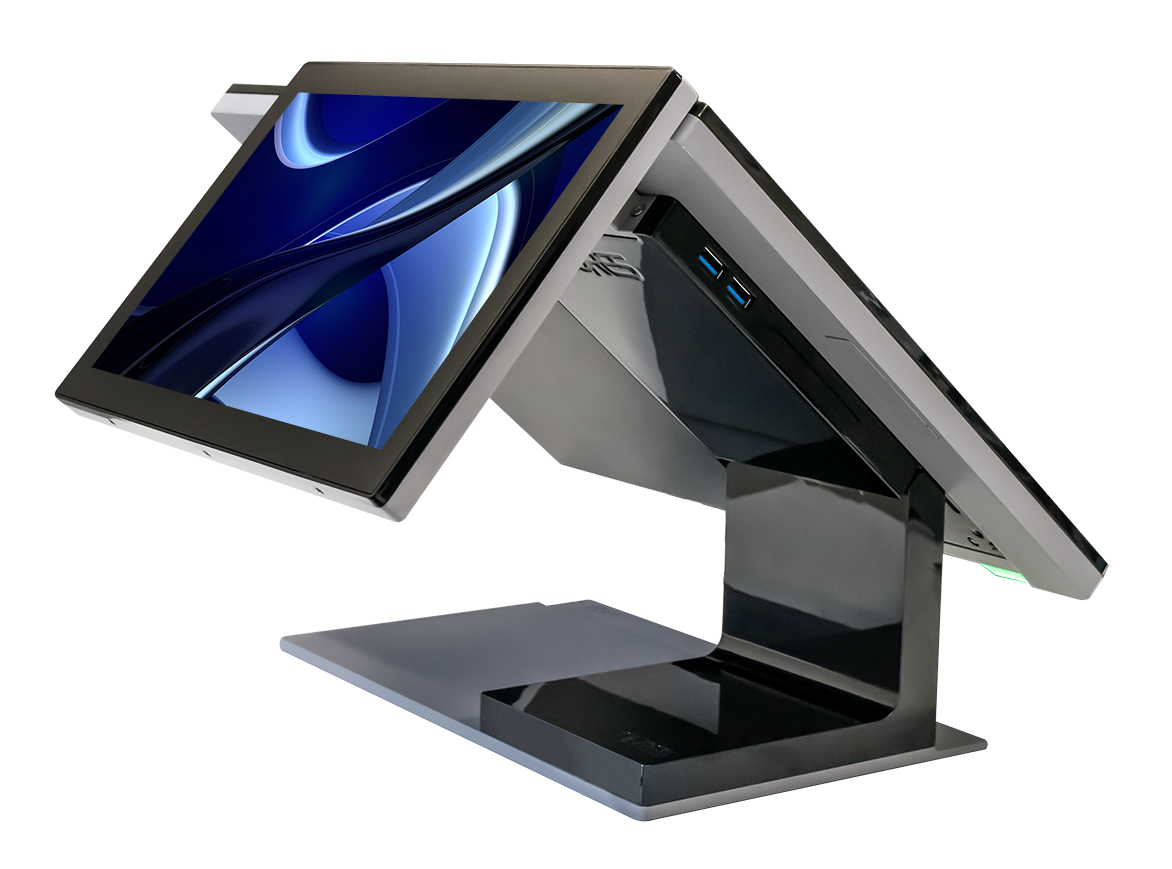

CircleDesktop Yuno II

YUNO II is a high-performance POS terminal combining extra power, lighter design, and improved ergonomics. Powered by a choice of 11th-generation Intel processors, it delivers faster, smoother operation in demanding retail and hospitality environments. Its compact, stylish form includes a shared AURES Processor Module, tool-free magnetic access for easy maintenance, and a stable, lightweight base.

Available in 15.1” (4:3) or 15.6” Full HD (16:9) multi-touch displays, YUNO II offers a flexible, durable, and future-proof POS solution.

  • Processor(s) Tiger Lake i3-1115G4E or i5-1145G7E (fanless)

    RAM DDR4 – 8 GB

    NVMe.M2 128 GB

    LCD 15.6‘” (1920 x 1080) (wide format in full HD) LED back-lighting

    Touchscreen Flat, zero bezel & multi-touch screen with projected, capacitive panel (10 point PCAP)

    Brightness 15.6” 450 cd/m2

  • INPUT-OUTPUT PORTS

    Serial 2 x serial ports (5/12 V power supply for COM3 / COM4 available)

    USB 6 x USB 3.0 2 x USB-C (1 to CPU)

    LAN 2 x 10/100/1000Base-T

    External display Port with support for HDMI, DVI and VGA (via USB-C)

    Cash Drawer 2 x 24/12 V DC

    Audio Internal loudspeaker

    Power Supply + external 19 V DC

    TPM2.0 on all boards

  • MISCELLANEOUS

    EMI CE/FCC Class B, UL, RCM, UKCA

    VPRO on I5 version

    Operating Temperature 0-35 °C

    Front Dust- and splash-proof Colour Sideral Grey

    Materials Polycarbonate (cover) + aluminium (structure)

    MTBF (screen) 50 000 hours

    Dimensions (W x D x H) 382 x 170.5 x 276.1 mm (15.6’’ Wide format, screen vertical)

    Weight 6.5 - 7.5 kg (15.6’’ Wide format)

    Compatible OS Windows 10 Iot Enterprise, Windows 11, Linux, Android X86

  • OPTIONAL EXTRAS

    Multi-Technology Card Reader for combined reading of MSR and RFID (high and low frequences), Bluetooth (BLE), NFC…

    Addimat and/or Dallas readers 1 slot, at right of EPOS terminal

    Bar-code scanners 1D & 2D

    Fingerprint reader Yes

    2nd screen (touch) 10.1’’ - 16:9 1280 x 800 Flat LED screen

    WIFI via BT/Wi-Fi USB key (same as for JAZZ/TWIST systems)

    VESA fixings option(s) Optional brackets

  • Click HERE for information on ID & Passport Scanners

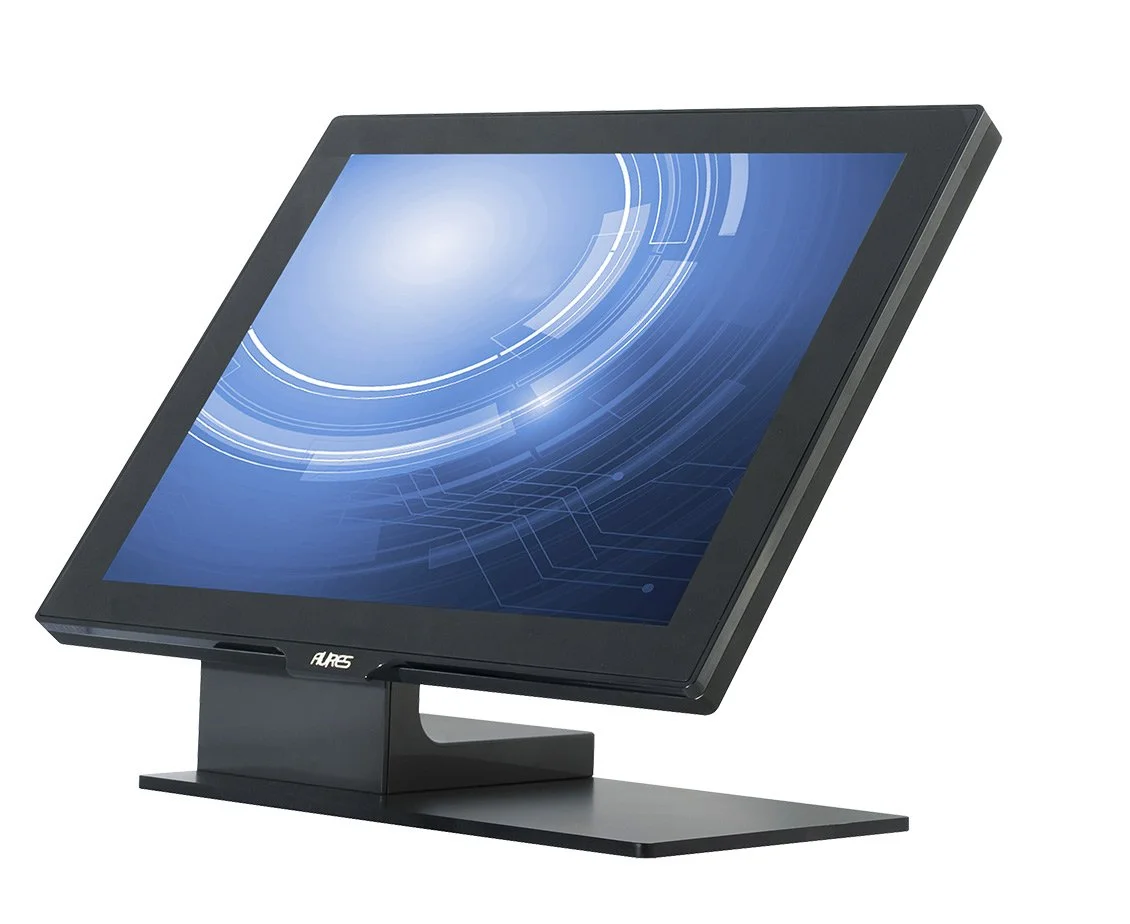

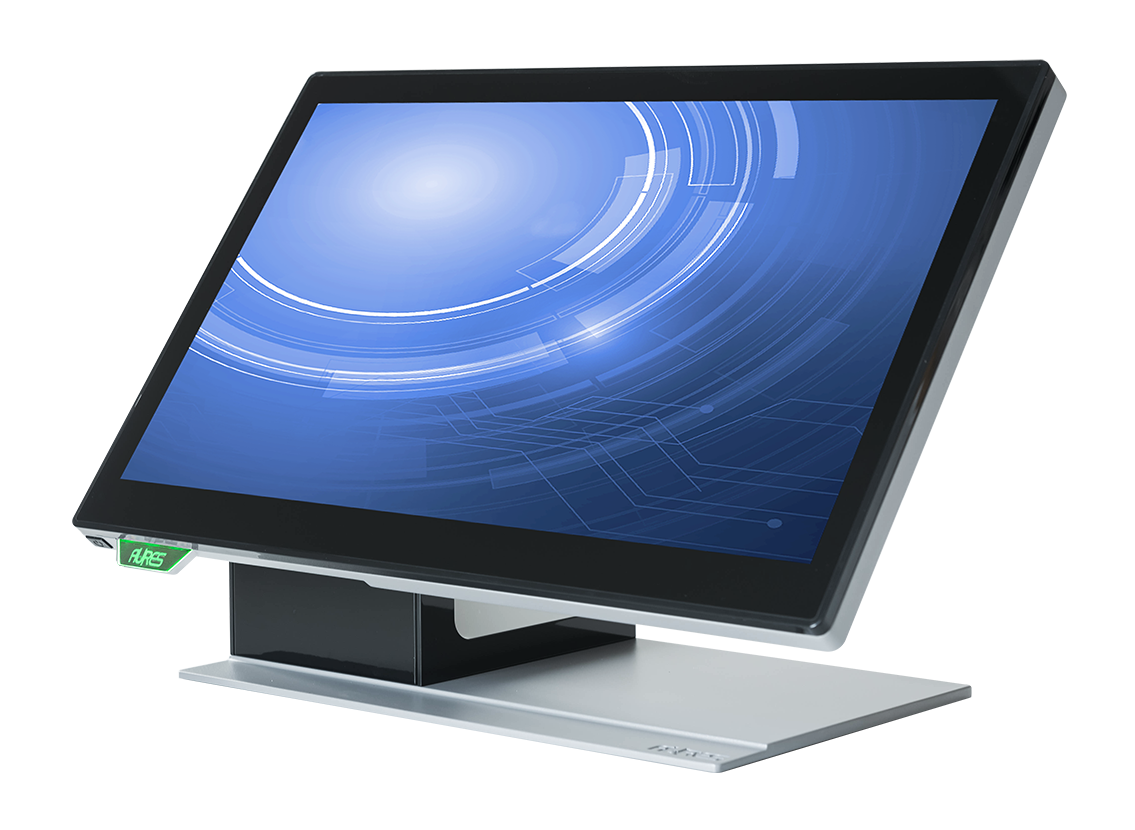

CircleDesktop Yuno C 15.6” Touchscreen

The CircleDesktop YUNO C 15.6” is a robust, stylish, and compact all-in-one POS terminal designed for versatile retail and hospitality environments. Offering advanced technology, flexible configuration options, and a sleek multi-touch display, it delivers reliable performance while remaining an affordable and sustainable long-term investment.

Backed by a 4-year back-to-base warranty, YUNO C provides confidence and durability for any modern POS setup.

  • MODEL YUNO C

    Processor INTEL Alder Lake N97 3.60 GHz

    RAM 8 GB DDR5 4800 (up to 16 GB)

    Storage Slot 1: M2 2280 PCIe 3.0 x2 (support NVMe/SATA) 128GB standard

    Slot 2: M2 2280 PCIe 3.0 x4 (support NVMe)

    LCD 15.6‘” (1920 x 1080) (wide format in full HD)

    15’’ (50.000 h); 15,6’’ (37.000 h) LED back-lighting

    Touchscreen Flat, zero bezel & multi-touch screen with projected, capacitive panel (10 point PCAP)

    Brightness 15.6” 250 cd/m2

  • INPUT-OUTPUT PORTS

    Serial 2 serial ports (+ optional 5/12 V power supply)

    USB 4 x USB 2.0 + 2 x USB 3.0

    LAN 10/100/1000 Base-T

    USB-C 1 x AltVideo and power delivery

    Cash Drawer 24/12 V DC

    Audio Internal loudspeaker, headphones, micro jack plug

    Power supply extended range 12-24Vdc (external PSU 19Vdc provided with the POS)

    M2 1 slot

    TPM2.0 yes

  • EMI CE/FCC Class B

    Security LVD, external adaptor UL c/us, CE, TUV, etc.

    Operating Temperature 0-35 °C

    Front Dust- and splash-proof

    Colour Black

    Materials Polycarbonate (cover) + aluminium (structure)

    Dimensions (W x D x H) 402.2 x 171.5 x 295.3 mm (15.6’’ Wide format)

    Weight 11 - 12 kg (15.6’’ Wide format)

    Compatible OS Windows11 IoT, Windows10 IoT, Linux

  • Multi-Technology reader for combined reading of MSR and RFID, Bluetooth (BLE), NFC…

    Addimat and/or Dallas readers Yes

    Bare-code scanners 1D & 2D

    Fingerprint reader Yes

    Customer display 20 characters x 2 lines (VFD)

    2nd screen 10.1’’ - 16:9 1024 x 600 Flat LED screen (Touch available as factory option)

    WIFI USB dongle

  • Click HERE for information on ID & Passport Scanners

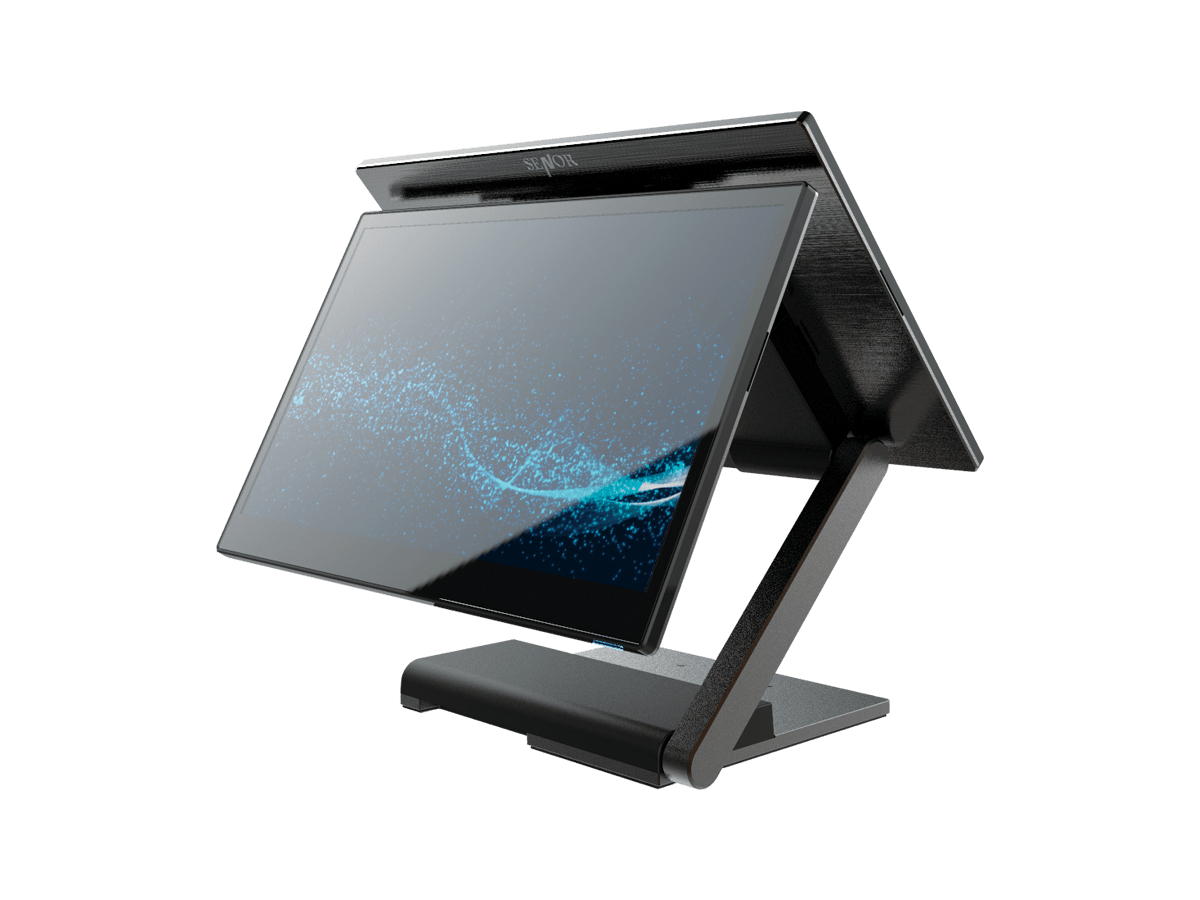

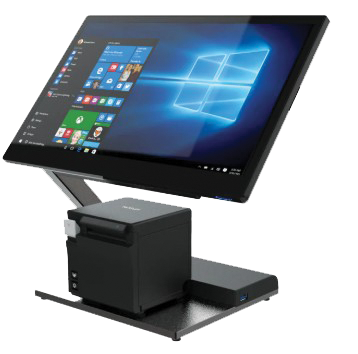

CircleDesktop Senor X5 POS 15.6” Touchscreen

The CircleDesktop Senor X5 POS 15.6” is a sleek, ultra-thin and highly versatile POS solution built for modern retail and hospitality environments. Designed for flexibility, it offers advanced security options including RFID, fingerprint and MSR readers, along with fast and reliable wireless LAN and Bluetooth connectivity.

The X5 features an ultra-slim 10mm touch panel with an on-cell PCT display for a seamless viewing experience, plus optional customer displays, scanners, printers and card readers to suit any setup.

Its sturdy yet adjustable stand, IP54-rated protection, and plug-and-play USB peripherals make it a compact, space-saving system that is easy to install, easy to use, and adaptable to a wide range of operational needs.

  • X5 J64

    Intel Celeron J6412 2.0 GHz

    (Turbo Boost up to 2.6 GHz)

    8 GB DDR4 RAM

    1 x 128 GB removable M.2 PCIe 2280 SSD

    X5 T316

    Intel Dual Core i3-1215U 1.2 GHz

    (Turbo Boost up to 4.4 GHz)

    8 GB DDR4 RAM

    1 x 128 GB removable M.2 PCIe 2280 SSD

  • USB Port 5 x USB 2.0, 1 x USB 3.0 (side)

    Serial Port 2 x RJ50

    Audio Port 2 x built-in speakers / 2 x 2 W

    Cash Drawer 1 x RJ12 (24 V)

    Ethernet Port 1 x RJ45 10/100/1000 Mbps

  • ENVIRONMENT & MECHANICAL SPECIFICATIONS

    Dimensions & Weight 379 (W) x 232~431 (H) x 246 (D) mm | 4.0 kg

    Chassis Material CHASSIS MATERIAL Aluminium die-cast

    IP Rating IP54 whole unit

    Temperature Operating: 0°C to 40°C | Storage: -20°C to 60°C

    Humidity 10% to 90% (non-condensing)

    Power Consumption 19 V / 3.15 A, external power adaptor, 100-240 V, 50/60 Hz

    19 V / 6.31 A, external power adaptor, 100-240 V, 50/60 Hz (printer integrated)

    OPERATING SYSTEM

    WINDOWS 10 IoT / 10 Pro / 11 IoT / 11

    LINUX Pro Kernel 3.0 up

  • Integrated Readers 3-track MSR, Fingerprint reader, RFID (13.56 MHz), 2D barcode reader

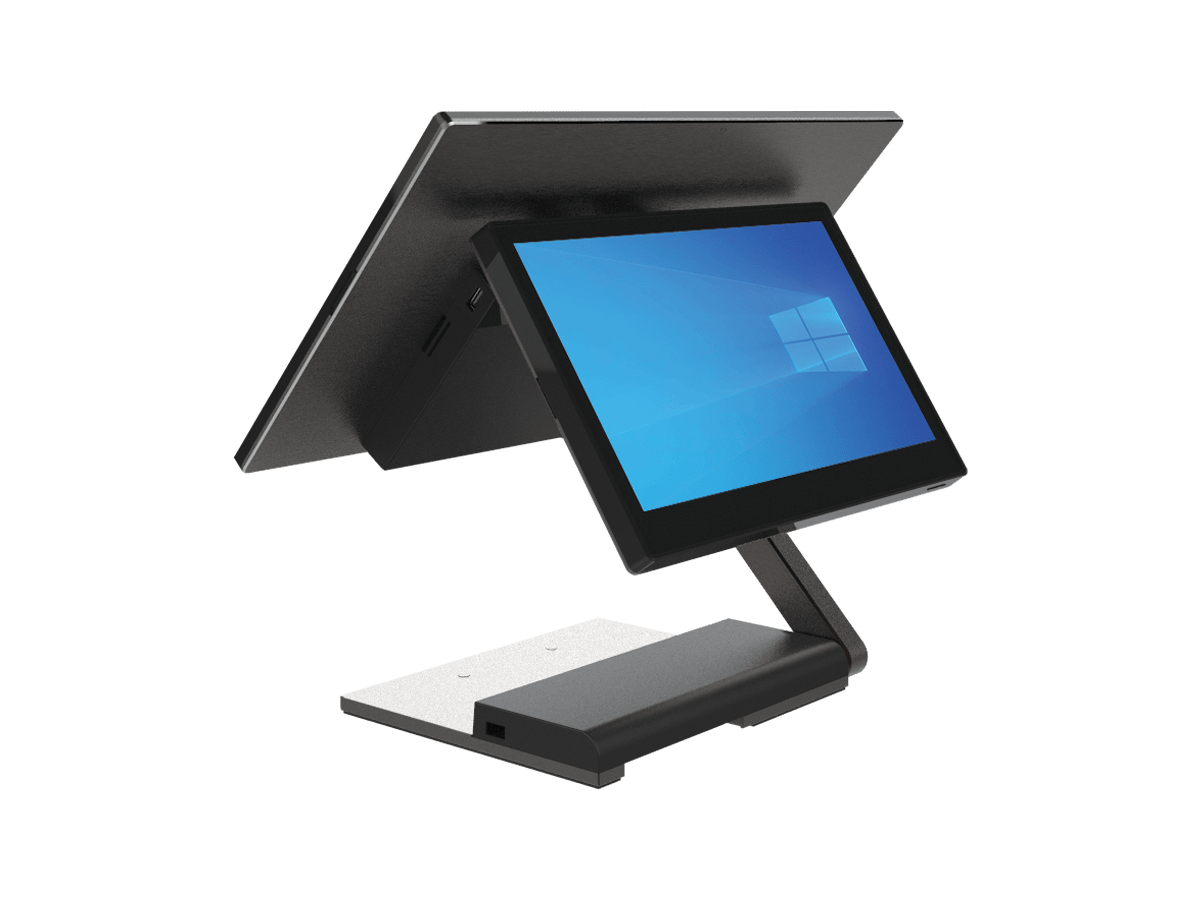

    Staff / Customer Display 11.6” FHD LCD

    Wireless LAN Integrated Dual Band Wi-Fi 802.11 b/g/n/ac (2x2 MIMO) + Bluetooth 4.1

    Extendable warranty options

  • Click HERE for information on ID & Passport Scanners

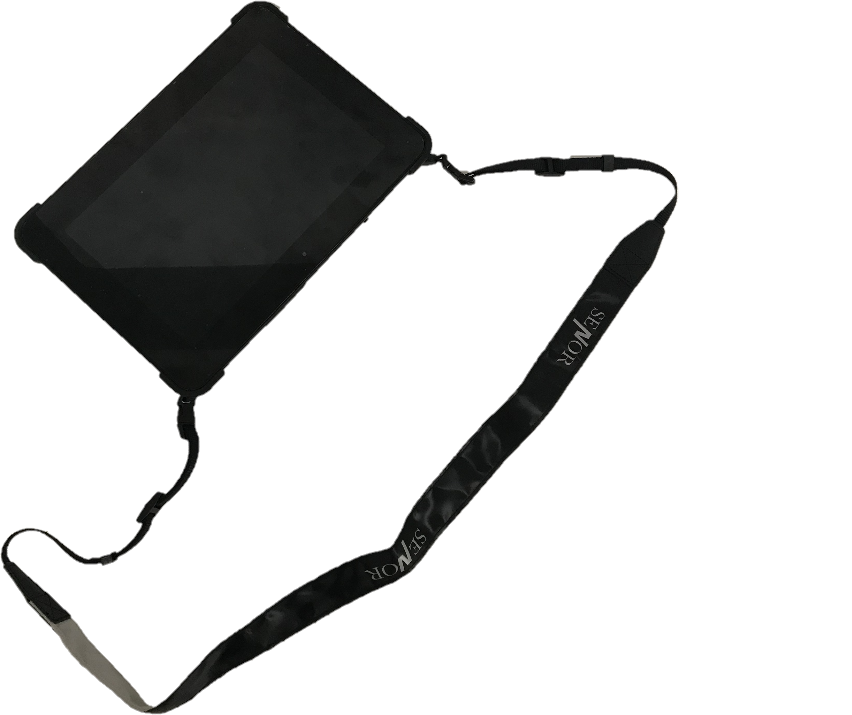

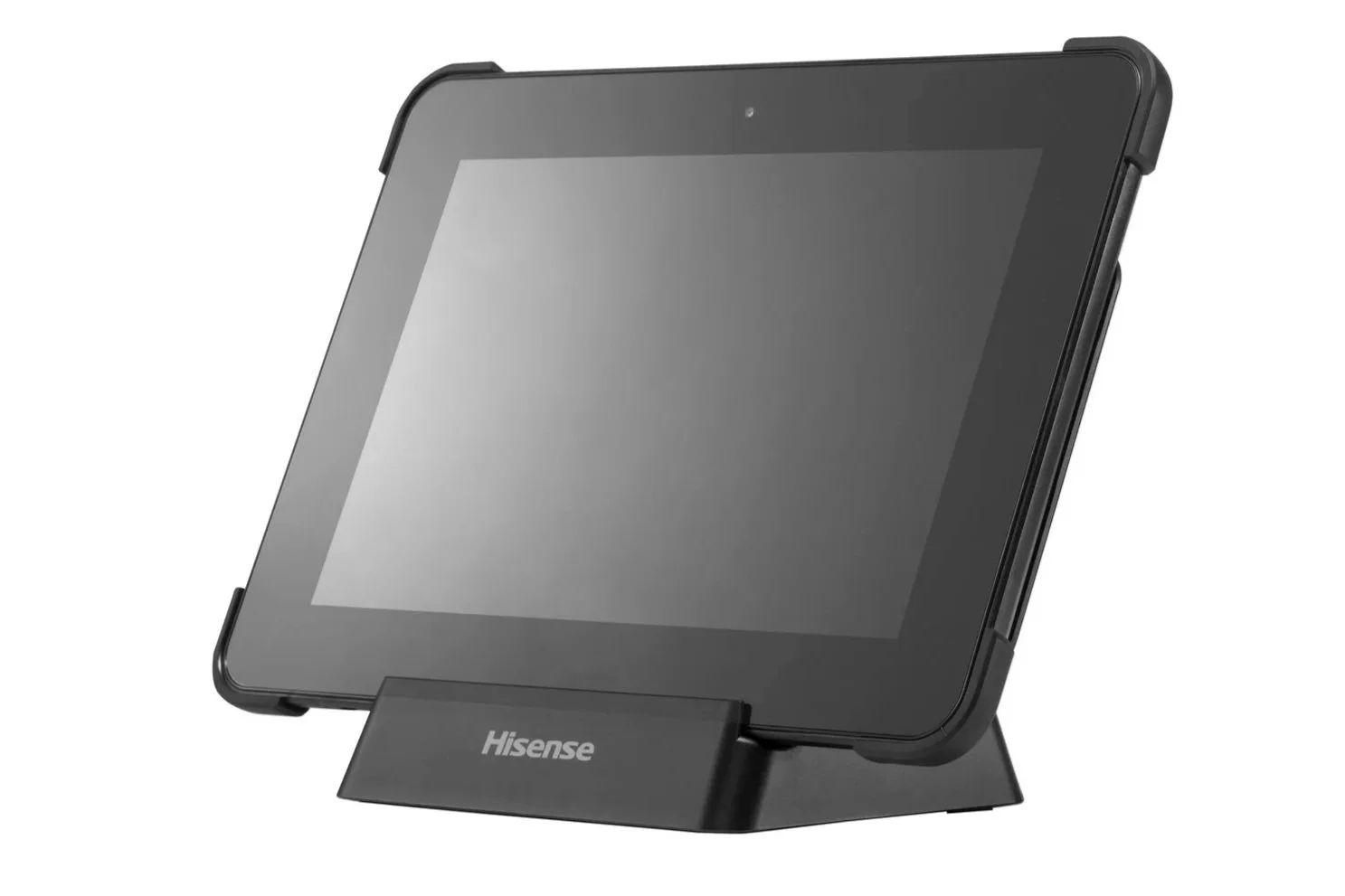

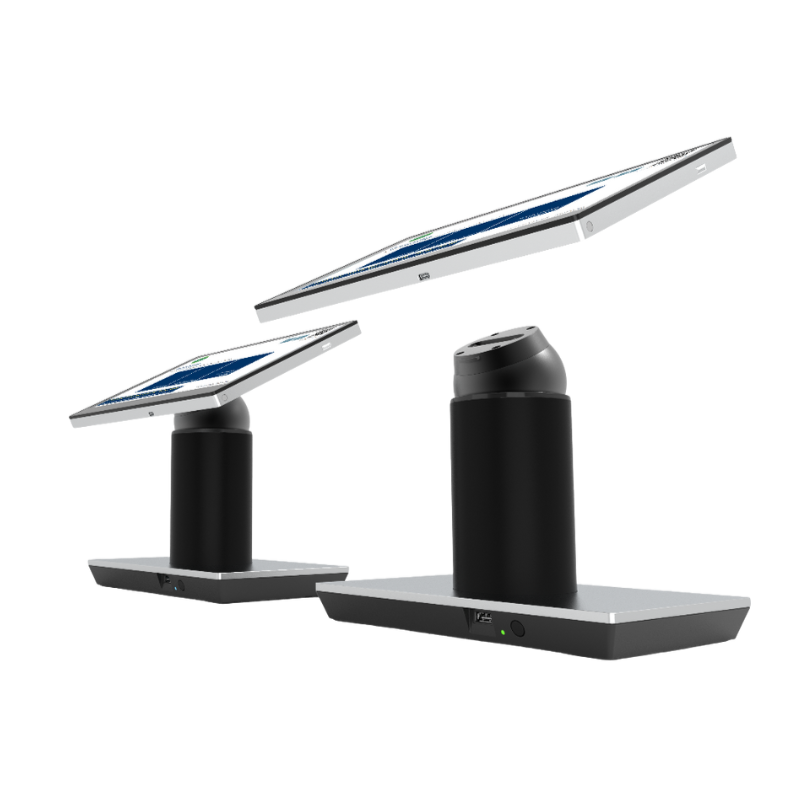

CircleDesktop 11.6” Tablet with 2D Scanner

The CircleDesktop 11.6” Tablet with 2D Scanner is a premium hybrid POS solution combining the portability of a tablet with the stability of a fixed base.

Featuring a Full HD 1920 × 1080 multi-touch display, it offers the flexibility to operate on either Android 9.0 or Windows 10, making it adaptable to a wide range of venue and software requirements.

Its durable metal frame provides 180° mast rotation, a 17° tilt range, magnetic locking and multiple I/O ports for seamless connectivity. With a built-in 2D scanner and compact design, this hybrid system delivers a powerful, modern and space-efficient POS experience.

  • Processors i5-5350U, i3 -5010U Broadwell or Intel Bay Trail J1900

    Memory DDR3-SO DIMM 4 GB in standard (up to 8 Gb) for the J1900 processor DDR-SO DIMM 8 GB in standard (up to 16 GB) for i5 and i3 processors

    SSD 2.5’’ 128 GB (2 slots)

    LCD 21’’ Touch screen Edgeless PCAP panel (multi-touch 10 points)

    Other Systems

    • Printer ODP 444 thermal printer

    • Scanner 1D/2D (DATALOGIC)

    Dimensions / Weight

    • Counter configuration  Standalone configuration (stand + ground plate)

    • Max height 73 cm 143 cm

    • Max width 43 cm (screen 55 cm (ground plate)

    • Max depth (screen) 26 cm 55 cm (ground plate)

    • Weight 19 kg 51 kg (stand + ground plate: 32 kg)

    • CEM CE Directive CEM 2014/30/EU (Class B)

    • Security CE Directive BT 2014/35/EU

    • Operating temperature 5 - 35° C

    • Front side Water and dust resistant (IP 54)

    • Colour(s) grey/black (other colours upon request – for specific orders)

    • Compatible OS Windows 10 IoT Enterprise, Linux

  • Click here to read more.

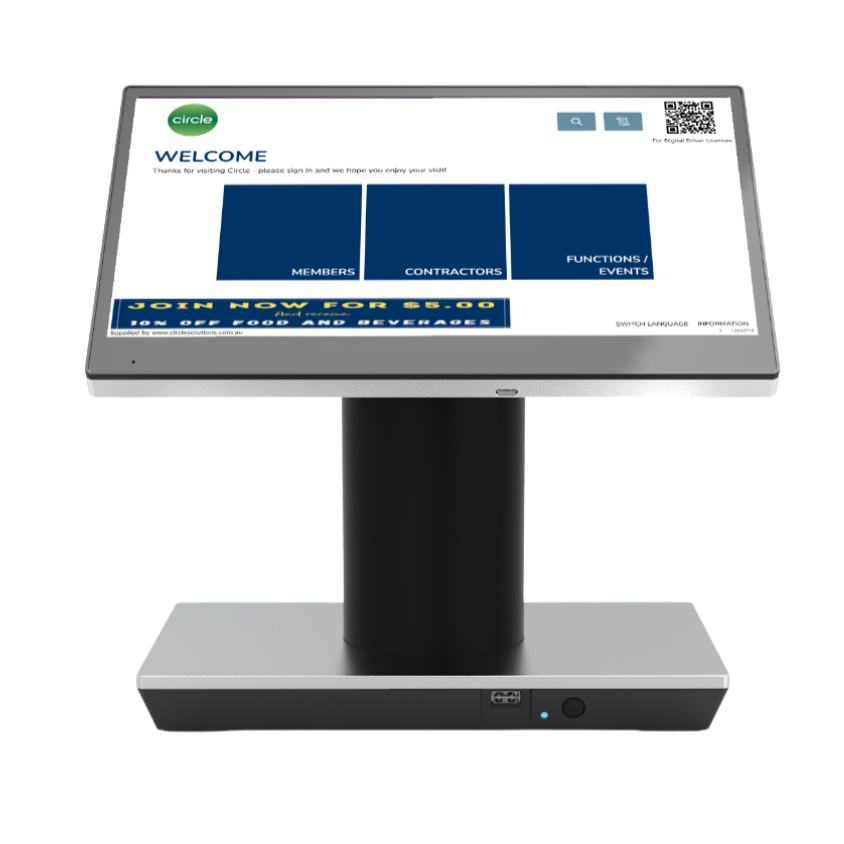

CircleDesktop NanoPad

The CircleDesktop NanoPad is a versatile, interactive touchscreen kiosk designed for a wide range of environments, with both standalone and counter-top configurations.

Its sleek 21” landscape or portrait display and slim vertical design provide an intuitive, multifunction experience that enhances customer engagement and streamlines operations. Equipped with YUNO Kiosk touch technology, an ODP 444 ticket printer, and a 2D barcode reader, the NanoPad supports a variety of applications, making it ideal for digitalising entry and service areas.

Backed by a 3-year back-to-base warranty, with optional upgrades for onsite maintenance, it delivers reliable performance and long-term value.

  • Processors i5-5350U, i3 -5010U Broadwell or Intel Bay Trail J1900

    Memory DDR3-SO DIMM 4 GB in standard (up to 8 Gb) for the J1900 processor DDR-SO DIMM 8 GB in standard (up to 16 GB) for i5 and i3 processors

    SSD 2.5’’ 128 GB (2 slots)

    LCD 21’’ Touch screen Edgeless PCAP panel (multi-touch 10 points)

    Other Systems

    • Printer ODP 444 thermal printer

    • Scanner 1D/2D (DATALOGIC)

    Dimensions / Weight

    • Counter configuration  Standalone configuration (stand + ground plate)

    • Max height 73 cm 143 cm

    • Max width 43 cm (screen 55 cm (ground plate)

    • Max depth (screen) 26 cm 55 cm (ground plate)

    • Weight 19 kg 51 kg (stand + ground plate: 32 kg)

    • CEM CE Directive CEM 2014/30/EU (Class B)

    • Security CE Directive BT 2014/35/EU

    • Operating temperature 5 - 35° C

    • Front side Water and dust resistant (IP 54)

    • Colour(s) grey/black (other colours upon request – for specific orders)

    • Compatible OS Windows 10 IoT Enterprise, Linux

  • Click here to read more.

Features we provide

Visitor management

Get your visitors in the door quickly. Scan your Visitor’s ID or photo card in 4-5 seconds, capture contact information, print them a sign-in slip and send them on in. Our Venue Visitor Management functionality caters to temporary members, affiliate memberships, and member guests. Visitors can also use their digital licence to sign in. Sign out by docket ID or barcode; we’ve got it covered.

Member Sign In

There is an ever-growing a need for venues to record electronic member venue entries. CircleScan allows venues to swipe membership cards or scan digital memberships from club app entries and exits at venues. You can also print a docket for the member to keep!

Capture Patron Contact Details

Retain visitor phone numbers and confirm address details with ease. Supported by in-depth reporting, your venue will always have the necessary information on hand in the event of a COVID case at your premises.

Auto Address API

For manual entries, get access to an auto-address completion feature via CircleScan. This allows your venue to remain compliant with radius checks and prevents people from entering from lockdown areas.

Contractor Management

Check contractor invoices quickly and simply against your electronic sign-in and sign-out reports. Photo ID scanning means you will know who is on your premises at every moment of every day. Run on-the-spot evacuation reports from terminals at will.

Manage Self Excluded And Banned Patrons

CircleScan allows patrons to be flagged as self-excluded or banned, preventing them from gaining entry to your venue and interacting with staff. Email alerts can be triggered (featuring a photo), which can be sent to security to manage the situation.

Functions & Events

Create functions and events, and allow guests and members to scan on entry. Load in the events in advance and track attendance seamlessly.

Cloakroom Tickets

Print cloakroom tickets for members and guests to safely secure their items. Tickets can be automatically date and time stamped with venue terms and conditions printed on the docket.

Ban Central Server

Share your ban lists quickly and easily across all venues in your group (soon to be expanded to self-excluded members.) Once a patron is banned from one venue, they can be banned from all venues. Further to this, Circle has worked with third-party suppliers to facilitate banning unruly patrons across competing venues and regions. Contact us today to find out more.

Scan 2 Join

Streamline your membership-joining process. Scan ID’s and send the information straight to your membership system. Remove paper forms and save time. You can also print QR codes at the base of the docket to encourage members to download the club’s app.

Tipping Comps

Run a tipping competition for NRL and/or AFL within your venue or across all of your venues.  Drive foot traffic into your venue with this great promotional tool that brings your community together.  Features include swipe to join comp, configurable bonus points/max points for no tips, and leaderboards.
